New Super Great

Kim Siemund — Wed, 25 Oct 2023 03:15:12 +0000

Overview

*Photo shows special edition model. Chassis model: FS84VVZ1TC (Super High Roof, Executive Package), Color: Bordeaux Red M (PABCO special paint color), Body: EXEO WING Pro Edition by PABCO (side skirts opt., special decal decoration), and aluminum wheels. Super High Roof may not be available on certain model.

INTRODUCTION

A New Evolution for Transport and Society

Japan has announced its commitment to achieve carbon neutrality by 2050. To help contribute to this demand, Mitsubishi Fuso is implementing a number of advanced CO2 reduction measures. Such advanced technology can be found in the new Super Great, with its high-performance, fuel-efficient*1 12.8L engine. The new design, including improved aerodynamics and the adoption of a super high roof, has resulted in a truck that is friendly to the global environment and achieves new fuel economy standards based on the JH25 mode. Additionally, following the installation of Japan’s first*2 Level 2 advanced driver assistance function, we are conducting research and development based in Europe, the United States, and Japan in order to realize fully-automated driving. By utilizing these technologies, we continue to further improve the reliability of preventive safety systems. As the flagship model from Mitsubishi Fuso, the new Super Great remains at the forefront of industry standards and technology. The future of the transportation business begins here.

*1: Compared to previous models. *2: In the 2019 model Super Great and large commercial vehicles.

ENGINE

An Engine Uniting Power, Comfort and Fuel Efficiency

New 12.8L 6R30 Turbocharged Engine Delivers High Output With Low Fuel Consumption
Newly developed torquey engine 6R30 (total displacement 12.8L) that is nimble on uphill roads and delivers excellent response. The turbocharger has been optimized to reduce friction, including the use of ball bearings in the bearings, and optimal boost pressure is set according to output to achieve low fuel consumption. In addition, fuel economy is further improved by optimizing calibration in the low rpm range, which is used more frequently. Meanwhile, for reduced NOx emissions, the purification rate of the after-treatment system has been improved to minimize AdBlue® consumption, thereby reducing running costs.

*AdBlue® is a registered trademark of the Association of German Automobile Manufacturers.

Compliance With New Heavy-Duty Fuel Efficiency Standards Based on JH25 Mode
Optimized driveline including a fuel-efficient 12.8L high-performance engine, improved aerodynamics, a super high roof, updated cab exterior, and low-resistance tires.

6R30 Engine 12.8L (Straight 6 Intercooler Turbo)

6R30 (T1)
290kW (394PS)/1,600rpm
2,000Nm/1,100rpm

6R30 (T2)
310kW (421PS)/1,600rpm
2,100Nm/1,100rpm

SAFETY

Cutting Edge Advanced Preventive Safety Systems

Active Break Assist 6
**(ABA®6)*1**

Active Sideguard
Assist® 2.0 *2

Front Blindspot
Information System *3

Show Details

ABA®6 (Active Break Assist 6) *1
The system uses a forward recognition camera and radar to detect the risk of collision and reduces damage through warning and brake operation. If a risk of collision is detected, the system automatically applies the brakes to avoid or mitigate damage. In addition, ABA® 6 offers even better obstacle detection. It has improved accurate detection of obstacles when driving around curves with good visibility, changing lanes, etc., and has improved the reduction of false detections.

*ABA® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

Active Sideguard Assist® 2.0 *2
Active Side Guard Assist 2.0 monitors the blind spot on the passenger’s side with radar. When a moving object is detected, the system alerts the driver (primary warning), warns with an audible alarm and lamp (secondary warning), and activates the damage reduction brake to bring the vehicle to an emergency stop to mitigate potential damage. A new function warns the driver when pedestrians, bicycles, or obstacles on the road are detected when turning right. Furthermore, when changing lanes, the system warns the driver when other vehicles are nearby to support safe driving.

* Damage Mitigation Braking is activated when the vehicle is traveling at a speed of 20 km/h or less.
* Active Sideguard Assist® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

Front Blind Spot Information System *3
The system detects pedestrians and bicycles approaching in front of the vehicle when it starts and displays a warning signal on the multi-function monitor in the meter cluster to help the driver avoid danger.

Standard Equipment
● Rearview camera*4

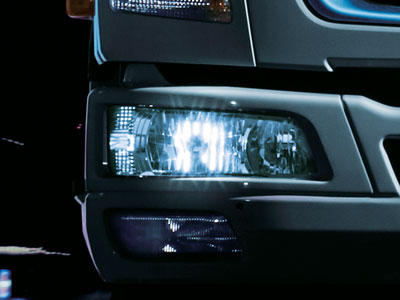

● Bright and durable LED headlights
● LED rear combination lamps with sequential turn lamps
● Electric parking brake (EPB)

Compliance with International Safety Standards and Regulations (Standard Equipment)
● BSIS (side collision warning system): Active Sideguard Assist® 2.0 (Active Sideguard Assist® 2.0).
● Rearview camera (device for checking immediately behind the vehicle when backing up): Rearview camera and interior monitor.

*1: This device does not mitigate collision damage in all situations and has limitations in recognition and control performance. Drivers should always be aware of their surroundings and drive safely without overconfidence. *2: The system is equipped to support braking operations in case pedestrians or bicycles are involved, but this does not necessarily mean that a collision can be avoided. Drivers should always be aware of their surroundings and drive safely. *3: This system is not designed to detect and warn of conditions in front of the vehicle in all situations, and its ability to recognize objects is limited. Drivers should always be aware of their surroundings and drive safely without overconfidence. 4: The image captured by the camera may differ from the actual visual image. The driver should always be aware of the surrounding conditions and drive safely without overconfidence in the information provided by this device.

*Image shows Super High Roof (interior color: dark red)

COMFORT

A Refined Interior, Inspiring a Sense of Peace

Super High Roof for a More Comfortable Living Space and Ample Storage Capacity
Place heavy objects without worry in the sturdy overhead storage compartment in the super high roof variation. Ambient lighting is placed above to spread soft light toward the ceiling. Additional compartments are provided to neatly store small items and documents.

● Highly textured living space in new dark red*1
● Equipped with Easy-Access Key, allowing you to lock and unlock the door without inserting the key *2

*1 Available Option *2 First application in a Super Great model

Vehicle specifications may vary by market. Contact your local FUSO distributor for more information.

The post New Super Great appeared first on Mitsubishi Fuso Truck and Bus Corporation.

New eCanter

Kim Siemund — Mon, 10 Apr 2023 09:44:04 +0000

Overview
EV Technology
Safety
Interior
Variations

*Vehicle configurations for illustrative purposes only

INTRODUCTION

New Power to Connect the Future of Logistics

Five years after its birth, Japan’s first^* series-produced light-duty EV truck, the FUSO eCanter® has undergone a major evolution. In addition to zero-emission transport, a significant expansion of body variations and improved driving range, the eCanter is ready to tackle an increasingly diverse set of business demands. As we embark on an era of full-fledged e-mobility, the eCanter continues to drive the future of the logistics industry as a pioneer of decarbonized trucks.

*According to MFTBC research as of August 2022 *eCanter® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

Click Here for the Interior 360° View

NEW BATTERY

Three Battery Configurations to Support Your Business Needs Across All Wheelbase Variants

*Charger specification and charging time applicable for international markets excl. Japan
1:Driving range may vary depending on drive axle/battery configuration, environmental conditions, battery state of health/charge, driver behavior, road traffic/profile and other factors. 2:Charge power and duration may vary depending on output capacity of charging situation, environmental conditions, battery state of health/charge, and other factors.

NEW EXTERIOR

Striking Exterior Design Befitting of the Next Generation EV

The front features the powerful and intrepid FUSO black belt, a traditional design motif passed down from generation to generation. Combined with the key EV colors of orange and blue, the eCanter’s striking appearance is befitting of the next generation of EV trucks.

LED Headlights with Daytime Running Lights (DRL)

Long lasting LED headlights come standard, improving nighttime visibility with their bright white light. Daytime Running Lights (DRL) are also standard equipment, to support safe daytime driving.

*Halogen headlights optional.

LED Rear Combination Lamps

Includes brake lamps, tail lamps, turn signal lamps and back-up lamps. These lamps combine multiple functions in a single, integrated, sophisticated design as standard equipment. The lamps provide high visibility with a generous amount of light to catch the attention of surrounding vehicles.

Leverage the Power of Vehicle Data to Drive Business Success

Truckonnect® provides real-time information on vehicles in operation via the Internet. Information transmitted by vehicles is stored in the FUSO database (cloud). Customers can monitor the current location and operational status of their vehicles via PC or smartphone. Truckonnect® can be used in a wide range of business situations, such as speedy response to vehicle problems, improving operational efficiency and preventing dangerous driving.

＊All vehicles are equipped with a Truckonnect communication terminal as standard. The dedicated Customer Assistance Center is available 24 hours a day, 365 days a year for various telematics services. In order to use Truckonnect services, you must apply. After FUSO informs you of the access ID and password that will be issued after the application, you will be able to use the service from your PC or smartphone. For details, please contact your nearest Mitsubishi Fuso dealer. Truckonnect® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

Position and Trajectory

Displays real-time position on a map and grasps the vehicle trajectory, including the route taken and the time it has parked or stopped.

Safe Driving Information

Detects sudden acceleration and braking, and displays on the screen when there is a tendency of dangerous driving.

Power Efficiency Information

Automatically calculates and compiles downloadable data of daily and monthly electricity consumption.

Vehicle Management

Allows you to grasp the operating status of your vehicle(s) and compare past and current months’ driving time.

Remote Diagnosis

Detects diagnostic trouble codes (DTCs) that signal vehicle failure and notifies you in real time.

Geo-Fencing Functionality

Real-time notification when a vehicle enters or exits a specific pre-registered area, improving operational processes and efficiency.

Learn more about Truckonnect

Connectivity Technology newly features EV specific function

With the next generation eCanter, MFTBC’s telematics solution Truckonnect® has also newly added EV specific features. The remaining mileage “eRange” as well as the remaining EV battery capacity compared to the new batteries, which can be displayed on the dashboard with the current model, will be also available on the Truckonnect portal. In addition, the “Charging Management System” function that allows the driver to set a timer to charge the battery during the period when electricity costs are the lowest, becomes available with the new model.

*The charge management system is optional and subject to subscription to the full maintenance package.

All vehicles are equipped with a communication terminal for Truckonnect as standard equipment. The dedicated Customer Assistance Center (CAC) is available 24 hours a day, 365 days a year for various telematics services. To use Truckonnect, an application to Mitsubishi Fuso is required. After the application, Mitsubishi Fuso will contact the customer with an access ID and password, and the customer will be able to use the service from his/her PC or smartphone. For details, please contact your nearest Mitsubishi Fuso dealer. Truckonnect® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

*Vehicle configurations for illustrative purposes only

EV TECHNOLOGY

The eCanter Evolves Further, with Mitsubishi Fuso’s Unique EV Technology

The eCanter supports two charging methods: normal charging and fast charging. Equipped with a charging connector for both methods on the right side of the vehicle, the eCanter can be easily recharged simply by connecting the plug. Depending on the environment and conditions of truck operation, both “normal” and “fast” charging methods can be used immediately.

* The illustration shows a wide cab, L-size battery, K scale, van body, special body color, special edition for photo shooting, fog lamps are factory-installed options, and dragfoilers are dealer options.

DRIVE TRAIN

Compact Structure Realized by our Motor-Integrated “e-Axle”

The e-Axle, a newly developed component that integrates the axle, reduction gear, motor, and inverter, is used to achieve a compact structure without a propeller shaft. This contributes to the expansion of chassis deployment.

Maximum Motor Output: 110kW/129kW
Maximum Speed: 89 km/h
Hill Climbing Performance: Above 20%

BATTERY

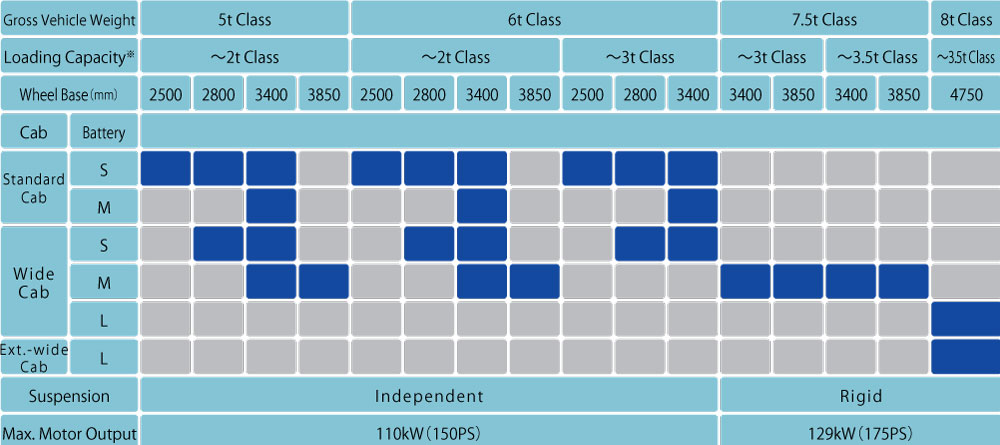

3 Battery Sizes to Support Your Selection From a Wide Range of Body Types

Three types of batteries are available to match a generous range of body variations and applications.
The eCanter rises up with superior performance to meet your business needs.

Efficient and Comfortable.
EV Technology Enables Even More Unique Functionality

Regenerative Brakes

When engaging the vehicle’s brakes, the generated braking force is used to charge the high-voltage battery at the same time. Active use of regenerative braking can contribute to improving electric power costs. Braking force can be changed in four levels, from no regeneration to strong regeneration. The shift lever is used to for these adjustments, which makes operating the system hassle-free.

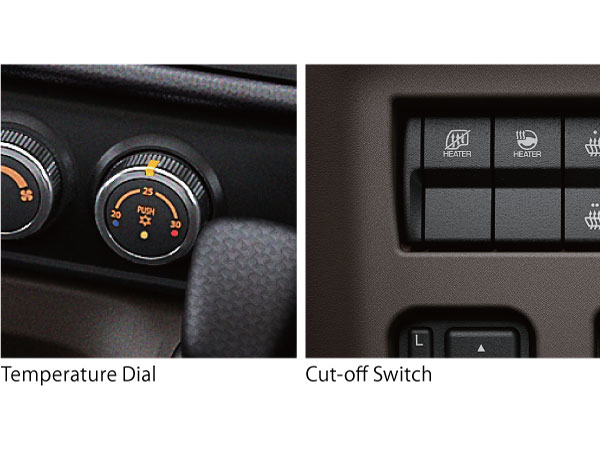

Electric Hot-Water Heating (PTC Heater)

Heating is provided by hot water-based PTC heaters. If you wish to increase the cruising range, you can use the temperature control dial to lower the temperature setting or turn off the heater to divert power consumption to driving.

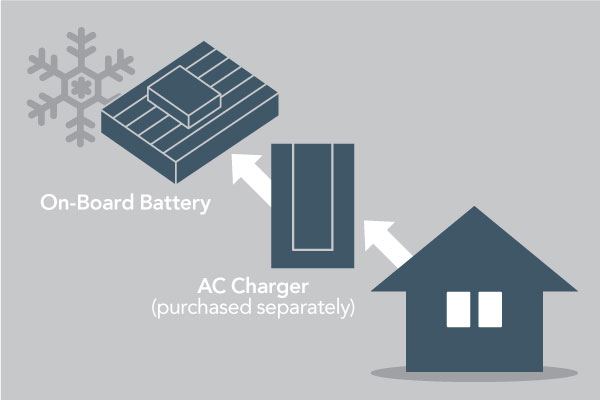

Battery Preconditioning

Preheating the on-board battery in time for departure ensures adequate performance at the start of winter driving. Preheating is done with the regular charger cable connected, so there is no consumption from the on-board battery and no effect on cruising range. The departure time can be set with a timer.

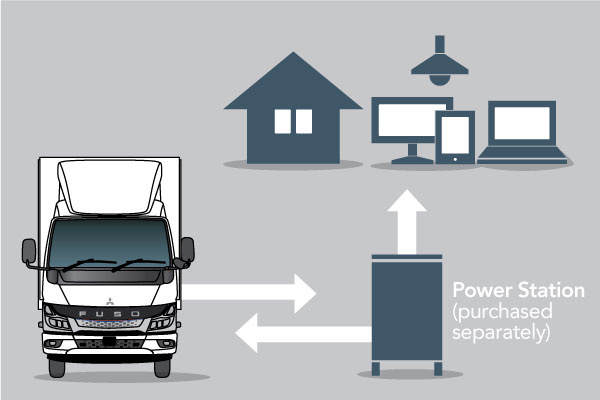

External Power Supply System (V2x)

External power can be supplied from an on-board battery via a power station. In times of disaster or emergency, the system can make a wide-ranging contribution as a power source for society.

Dual Charging Ports for Normal and Fast Charging

Further Enhance EV Performance with Our Options

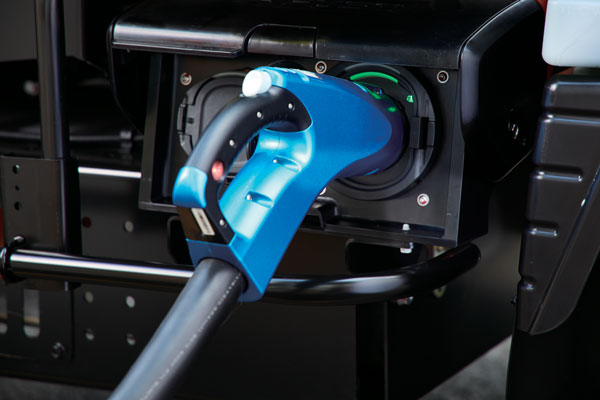

Charging Ports

Compatible with normal charging (AC) and quick charging (DC). The two are different in size and pin positions are different, making it easy to find the matching port.

*Fast charging is compatible with the international standard “CHAdeMO”.
*The locations of quick charging and normal charging differ depending on the car model.

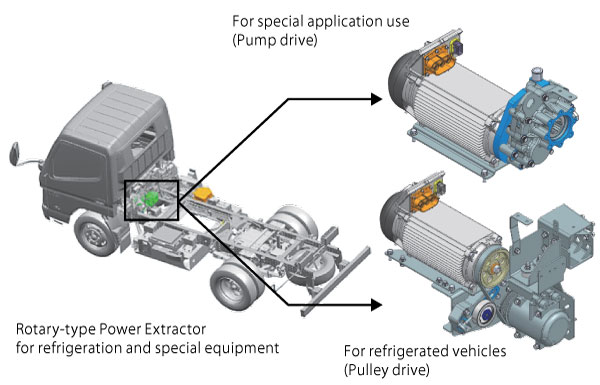

Power Extractor (ePTO)

Motorized ePTO for power extraction similar to diesel trucks. Equipped under the cab, it can drive specially equipped hydraulic pumps and refrigeration compressors. The existing system for diesel trucks can be used without modification. (High-voltage supply function is not available.)

Power-saving Heating/
Defrost Package

Power-saving steering wheel- and seat-heating are installed to prevent range reduction due to use of PTC heater in winter. In addition, insulation inside the cab has been added. This ensures a warm driving environment even when the output of the PTC heater is limited and helps maintain cruising range. Additionally, a defrosting function using a windshield heater has been newly added to defog the windows while keeping power consumption low.

eAxle

*Vehicle configurations for illustrative purposes only

TOTAL SAFETY

An Array of Advanced Safety Features Come Standard, Protecting Those Inside and Outside the Vehicle

* The photo shows a standard cab, S-size battery, B scale, van body, special body color, special edition for photo shooting, fog lights are factory-installed options, and dragfoilers are a dealer-installed option.

Active Sideguard Assist®1.0

Lowering the Risk of Left-Turn Accidents

When turning left or changing lanes to the left, the system uses lateral millimeter-wave radar to detect obstacles within the predicted range of the vehicle’s passage. The warning lamp on the passenger door pillar turns yellow to alert the driver. If the driver continues to steer to the left or operate the left turn signal, the system alerts the driver with a buzzer and the lamp flashes red. Furthermore, if the left turn is made, the damage mitigation brake is activated to bring the vehicle to an emergency stop to mitigate the damage.

*Active Sideguard Assist® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

Primary warning: If a pedestrian or car is detected in the left direction while driving, the lamp on the passenger-side pillar turns yellow.
Secondary warning: If a left turn is subsequently made or the left turn indicator is operated, the warning lamp will turn red and a buzzer will sound.
Brake activation: If the driver continues to turn left despite the sound of the alarm, the damage mitigation brake is activated.

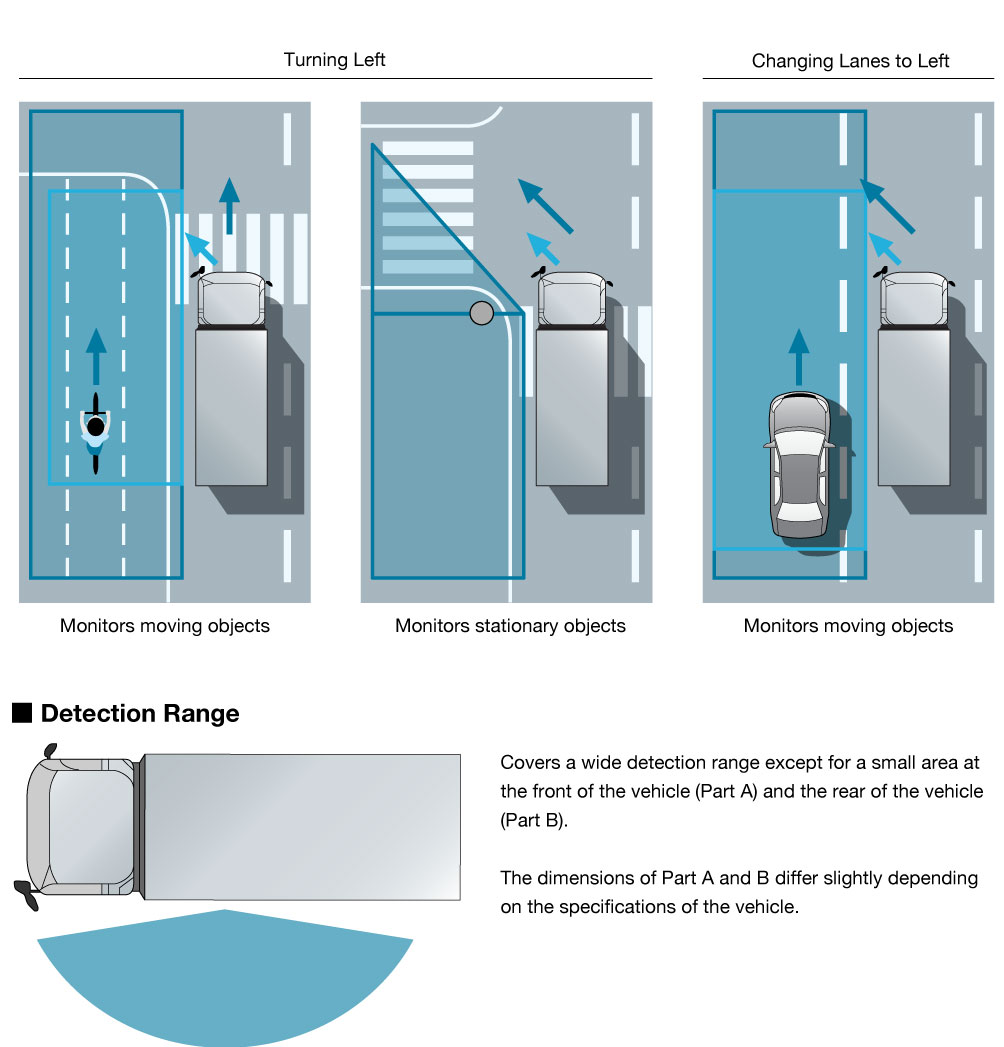

Active Sideguard Assist 1.0 Detection Illustration

Left Turn

Left Lane Change

■ Active Side Guard Assist 1.0 assists drivers in preventing and does not enable drivers to fall asleep at the wheel or look away from the road. It is not intended to enable drowsy or blind driving. It does not enable drowsy or blind driving. Recognition performance has limitations. Do not overconfidently trust the system. When driving, be sure to check the safety of your surroundings and drive safely. and drive safely.

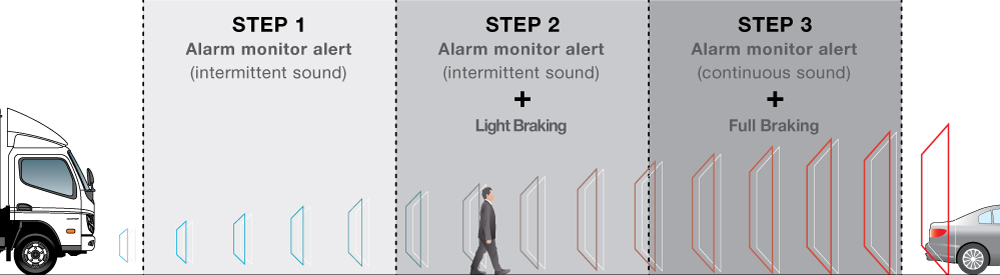

ABA®5：Active Brake Assist 5

Detects vehicles and pedestrians to help avoid collisions and mitigate damage

A forward recognition camera and high-precision millimeter wave radar detect moving vehicles, stationary vehicles, and pedestrians*1 in front of the vehicle. If the system detects a potential collision, it alerts the driver according to the distance between vehicles and driving conditions, and automatically activates the brakes*2 to help avoid a collision or mitigate damage from a collision.

*1 Only moving persons are detected. *2 Certain conditions apply for activation. ABA® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

■ The system may not be activated depending on the conditions of vehicles and pedestrians in front, road conditions, weather, vehicle condition, driver’s driving condition, etc. Please refer to the instruction manual for details.
■ The system does not avoid collision or mitigate damage from collision in all situations, and its recognition and control performance is limited. When driving, always check the safety of your surroundings and keep a sufficient distance between vehicles.

Image: Detects vehicles and pedestrians*3 in front of the vehicle and assists in collision avoidance and mitigation by warning and braking

*3 Pedestrians are detected only for moving persons and are handled by the 1st STEP and 2nd STEP shown in the figure.

Active Attention Assist®

Driving condition is monitored, including the amount of steering, lane change rate, and average vehicle speed, while driving. The system also uses a face recognition camera to detect the driver’s eye gazing and eyelid movements.

* Available as an option
* Active Attention Assist® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

■ Active Attention Assist is a system that assists safe driving by alerting the driver to a decline in driving attention. Please do not be overconfident and drive safely by taking appropriate rest periods as necessary during driving. The system does not operate at low speeds.

IHC: Intelligent Headlight Control

A camera mounted on the windshield detects traffic conditions ahead and ambient brightness to control high/low beams. The system automatically switches to high beams on dark roads, such as when there are no streetlights, and automatically switches to low beams in brightly lit areas, such as when there are oncoming cars or vehicles in front of the vehicle.

■The automatic switching control by Intelligent Headlight Control (IHC) has limitations depending on the situation. Always check the surrounding conditions and perform the switching operation manually if necessary.

TSR: Traffic Sign Recognition

Traffic signs ahead recognized by the camera are displayed on the full LCD meter. (Recognized signs: Speed limit/No passing/Stop)

■ Traffic Sign Recognition (TSR) is not capable of recognizing road signs in all situations. Please do not overconfidently trust the system and be sure to check signs yourself.

Vehicle Stability Control System (ESP®)

Sensors constantly detect the vehicle’s orientation. If there is a risk of skidding or rolling over on curves, the system optimizes the driving force of the motor and the braking force of the four wheels for safety.

* ESP® is a registered trademark of Mercedes-Benz Group AG

■ ESP® is not a device that enables driving beyond the limits. ESP® is effective only to the extent that the tires do not exceed their grip limits. Do not overconfidently trust ESP®, and be sure to drive safely by slowing down sufficiently on slippery road surfaces and before curves.

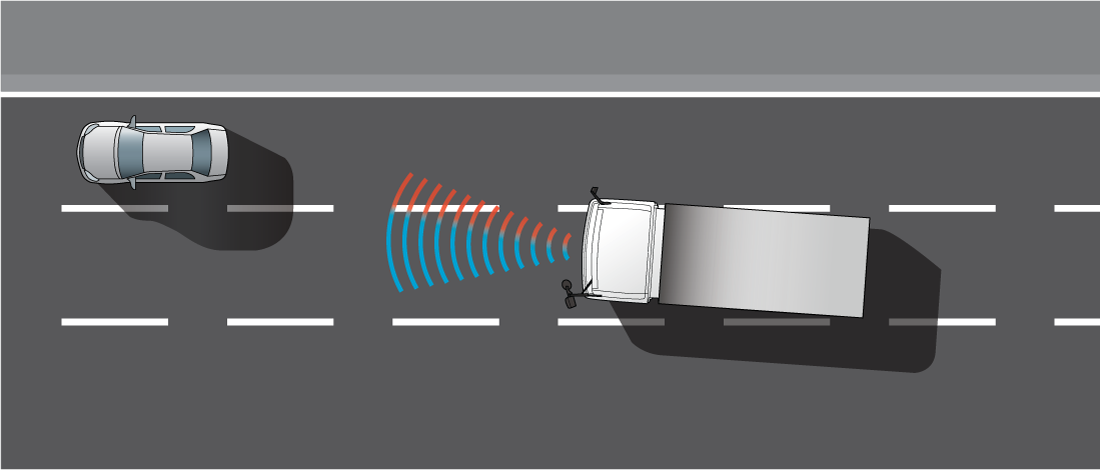

Lane Departure Warning System (LDWS)

If a vehicle veers out of its lane without operating the turn signal on the highway, etc., the white line recognition camera detects the veer (and also detects yellow lines). The system alerts the driver with a buzzer and full LCD meter to encourage safe driving.

■ LDWS is activated at vehicle speeds of 60 km/h or higher. For details, please refer to the instruction manual.
■ LDWA is intended to assist safe driving and is not a device that enables drowsy or blind driving. LDWA cannot assist driving when white or yellow lines cannot be recognized due to snowfall, snow cover, flooding, backlighting, etc., nor can it assist driving in poor visibility conditions such as rain or fog. Please operate the steering wheel according to the surrounding conditions and drive safely.

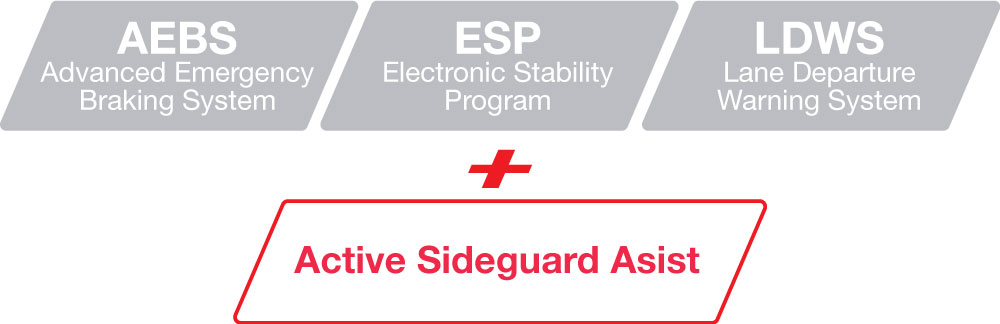

Even More Standard-Equipped Advanced Safety Functions

Electric Parking Brake (EPB)

The electric motor helps make various operations easy on the driver. Stable braking force is also provided when parking on a slope and the parking brake is automatically activated when the P-range button is pressed.

Rear Eye Camera System

A wide-angle rearview camera is standard. A monitor installed in the position of the room mirror allows the driver to check the rear of the vehicle, reducing the risk of accidents when backing up.

High Voltage Cutoff Switch

An emergency stop switch is provided on the right side of the vehicle to shut off the high-voltage power supply from outside the vehicle in the event of an accident or other emergency. By pressing this red button in an emergency, the high-voltage power supply is shut off, eliminating the risk of electric shock.

■ Do not press this switch except in case of an accident. If the high-voltage cutoff switch is pressed, it will not automatically recover. After entering the garage for maintenance, the diag code (DTC) must be erased.

Vehicle Proximity Alert System (AVAS)

Since EV trucks make little noise while driving, people outside the vehicle are less likely to notice an approaching truck. The eCanter emits a sound in front of the vehicle while driving at 20 km/h or less to alert pedestrians and other people outside the vehicle of the vehicle’s presence. When backing up, the eCanter emits a similar sound to make pedestrians aware and reduce the risk of traffic accidents.

* Deactivation is not possible. The volume cannot be changed.

■ AVAS is a system to warn drivers of approaching vehicles and is not intended to prevent collisions. When driving, be sure to check the safety of your surroundings and drive safely.

LED Headlights/Daytime Running Lights (DRL)

In addition to their long life, LED headlights are standard equipment to improve nighttime visibility with their bright white light. In addition, daytime running lights (DRL) are also standard equipment. The DRLs are always on, even during daytime driving, to support safe driving. The lights come on when the key is turned on and turn off when the position lamps or fog lamps are turned on.

* Halogen headlights are available as an option.
* Fog lamps are optional equipment.
* Turn (directional) lamps are turned on for the purpose of photography.

LED Rear Combination Lamp

Stop lamps, tail lamps, turn (direction indicator) lamps, and back-up lamps. The lamps combine multiple functions in a single, integrated, sophisticated design as standard equipment. The brilliant luminescence and excellent lighting response of the stop lamps contribute to visibility from following vehicles.

* Lights shown illuminated for the purpose of photography.

*Vehicle configurations for illustrative purposes only

NEW INTERIOR

Upgraded Interior for Superior Driver Comfort

Orange accents are used as a key color throughout the interior to convey agility and activity. In addition, a full LCD gauge meter with a 10-inch display is linked to the steering wheel switches. The interior is equipped with advanced features with driver comfort in mind, including a touch-screen navigation system with a center display and a Bluetooth®-compatible phone/music system combined with sophisticated coloring.

* Includes some factory-installed options.
* The Bluetooth® wordmark and logo are registered trademarks and are the property of Bluetooth SIG, Inc. Mitsubishi Fuso Truck and Bus Corporation uses these marks and logos under license.

Standard Cab – Active Attention Assist, Power Saving Heating Package, and Passenger SRS Airbag System are options.

Click Here for the Exterior 360° View

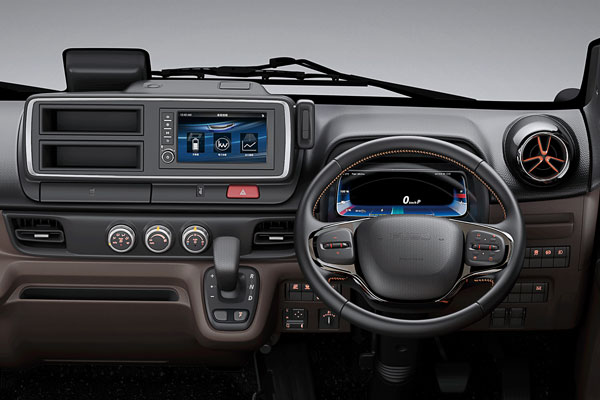

Modern Interior Design Blends Beautiful Styling and Functionality

Flowing black wing lines from the dashboard to the left and right pillar grips. This modern design simply integrates beautiful styling and functionality. The key color orange is used throughout to express a sense of active, agile movement and work, as well as easy-to-understand operation. The interior is befitting of an EV truck for a new era.

* Depicted specification for illustrative purposes only

Meter design consistent with the dashboard wing line. Graphics that emphasize a sense of precision and improve the visibility of letters and icons.

* Depicted specification for illustrative purposes only

An Interior that Shapes Your Driving Experience with Purpose and Comfort

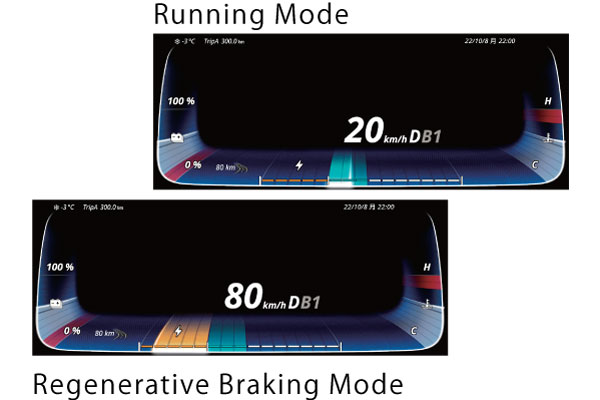

Driving Status at a Glance via the Full LCD Display

Equipped with a full 10-inch LCD display with excellent visibility and user interface, your vehicle status can be checked at a glance. A multi-information display that allows the user to check vehicle information and change function settings is also included. The multi-information display can be linked to the steering wheel switches to display menu screens and make system changes and other settings.

Center Console for All Your Information Needs

The large screen displays a great deal of information to support the driver’s operation, such as navigation, and vehicle information, battery level. Utilize the touch screen to connect via Bluetooth® for calls and audio. The steering wheel switches can be used to adjust volume and make and receive phone calls. The screen prevents light reflection and is easy to read.

* The Bluetooth® word mark and logos are registered trademarks and are the property of BluetoothSIG, Inc. Mitsubishi Fuso Truck and Bus Corporation uses these marks and logos under license.

Steering Wheel Switches for Effortless Operation

Center display menu selections, audio volume adjustment, hands-free calling, and menu selection in the full LCD menu selections in the full LCD meter can be operated without taking your hands off the steering wheel.

FUSO Easy Access System

FUSO Easy Access Key

Lock/Unlock Switch (Door Nob)

Starter Switch

Keyless entry is possible by simply pushing the lock/unlock switch on the doorknob while the FUSO Easy Access Key is in a pocket or other location, allowing the doors to be locked and unlocked. It is also possible to lock/unlock the doors by remote control operation from near the vehicle.
To start the motor, simply turn the starter switch on the steering column. This system can be conveniently utilized for work that requires repetitive getting in and out of the vehicle, starting and stopping, such as deliveries in the city.

■ Designed with Theft Protection in Mind
The FUSO Easy Access Key is also equipped with an immobilizer (anti-theft device) function. A mechanical key is also available in case the batteries run out.

* Standard equipment on all models.
* Even if the FUSO Easy Access Key is in the operating range, if it is too close to the door glass or steering wheel, the key will not operate properly.
If the key is too close to the door glass or steering wheel, it may not work properly.
Please refer to the operation manual for details. Please refer to the instruction manual for details.
*Persons using implantable medical devices (e.g., implantable cardiac pacemakers, implantable cardioverter defibrillators [ICDs], etc.) should not come within 22cm of the system’s antenna. This may affect the operation of your medical device. For more information, consult your nearest Mitsubishi Fuso dealer.

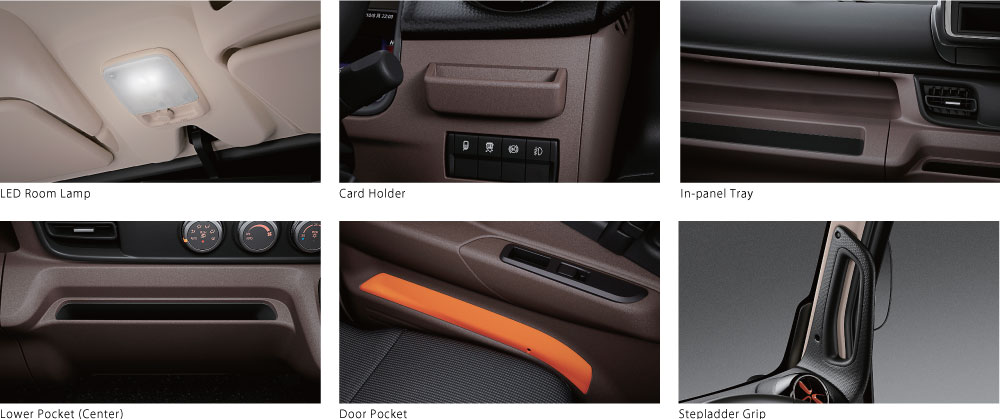

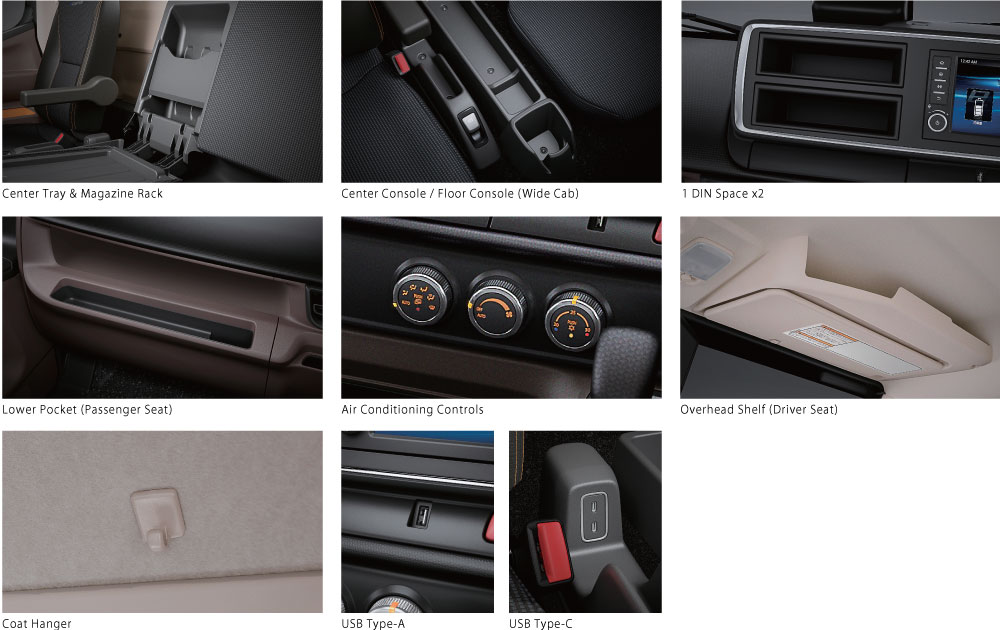

Easy-to-use Features and Standard Equipment to Support Your Daily Operations

*Photo shows wide cab. Active Attention Assist and Power Saving Heating Package are optional.

A full lineup of optional equipment for even greater ease of use

Step lamps (both sides)
Center console for two-passenger seating
Driver’s reinforced door
Fog lamps
Vinyl chloride mats
Front-passenger SRS airbag system
Front-passenger electric mirror

*Vehicle configurations for illustrative purposes only

BODY VARIATIONS

Whatever Your Business Demands, the eCanter is Ready

Major enhancements to battery performance translates to extended range and improved uptime for your business. The era of EVs has arrived to the world of logistics. Wearing Mitsubishi Fuso’s traditional black belt, the Next Generation eCanter drives with a fearless expression on its face, ready to change the future of logistics.

Short Wheelbase

Long Wheelbase

Extra Long Wheelbase

An Extensive Chassis Lineup of 28 Models Covers a Wide Range of Applications

*Load capacity is a reference value for a flat body.
*Model availability varies with market. Please contact your local FUSO distributor for more information.

CARGO Cab Variation

Cab Type

Single Cab (3 Passengers)

Choice of cab width (excluding mirrors) and roof height

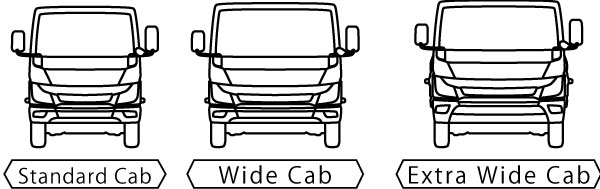

Cab Variations

Wheelbase Variations

Body Variations

* Availability of options varies with markets. Please contact your local FUSO distributor for more information.

CARGO Body Color Variations

CARGO Standard Equipment

Interior Full Trim

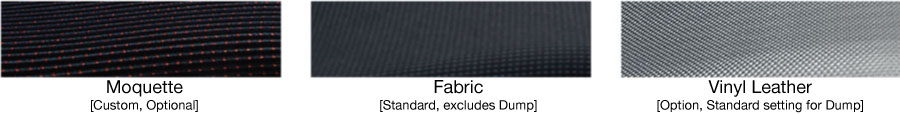

Fabric seats
Driver’s armrest
Overhead shelf (driver’s seat)
LED headlights with auto-light function
Daytime running lights (DRLs)
LED rear combination lights
Full LCD meter
Center display
Truckonnect
Rear-Eye Camera System
Electric Parking Brake (EPB)
Hill start assist system
FUSO Easy Access System
Steering wheel switches
Vehicle proximity alert system (AVAS)
eAxle
Battery pre-conditioning
External power supply system (V2x)
Electric hot water heating (PTC heater)
High-voltage cutoff switch
Brake override system

* All specifications are for CARGO; some settings differ for D VAN and D WING.
* Seat fabric and body color may appear different from the actual color.

＊From left to right: Standard cab, S size battery, B scale, van body, special body color, special edition for photography, fog lamps are factory-installed options, and drag foiler is dealer-installed option.
Wide cab, M size battery, E scale, van body, body color Ice Blue Silver, special edition for photography, fog lamps are factory-installed options, and dragfoil is a dealer option.
Wide cab, L size battery, K scale, van body, special body color, special edition for photography, fog lamps are factory-installed options, and dragfoil is a dealer option.
Charger displayed for illustrative purposes only.

Vehicle specifications may vary by market. Contact your local FUSO distributor for more information.

The post New eCanter appeared first on Mitsubishi Fuso Truck and Bus Corporation.

FA/FI

usnadmin — Sun, 15 Dec 2019 06:24:41 +0000

9-12t

GVW Gross Vehicle Weight
100-125kW

Maximum Output
420-520Nm

Torque

Highlights

Heavy-duty rear suspension
Front and rear anti-roll bars
Smooth-shifting 6-speed overdrive transmission
Tough, durable chassis and suspension
Short turning radius

Light Footed and Powered for Profit

Designed to deliver maximum cost performance in a handsome, nimble, easy-to-handle package, the FI and FA range boasts time-proven technology and robustness beyond the price it demands.

Fuel-efficient, common-rail injection partnered to a 4-valve, 4-cylinder engine means power and torque without sacrificing efficiency. Integrated-LED instrument panel and overheat warning buzzer means drivers can push the limit in hot climates without overstressing the vehicle, helping avoiding costly repairs.

With a smooth-shifting 6-speed transmission mated to a large-diameter clutch, the FA range can handle business demands day in, day out, without breaking the bank.

Vehicle specifications may vary by market. Please contact your local certified FUSO dealer for more information.

The post FA/FI appeared first on Mitsubishi Fuso Truck and Bus Corporation.

FZ

usnadmin — Sun, 15 Dec 2019 06:02:03 +0000

16.2-25t

GVW Gross Vehicle Weight
170-205kW

Maximum Output
810-1,100Nm

Torque

Highlights

ECU-controlled fuel injection
Optimized for power, better economy
Comfortable sleeper cabin
Handles heavy and tall loads

All Performance, No Spin

The FZ series from FUSO is built strong, real strong. With thick, full-depth long members, the FZ’s chassis adds the extra strength required for heavy loads. The frame is shot blasted and powder coated to add the durability required for reliable performance on rough roads. Inter-wheel and inter-axle differential lock prevents one-wheel spinning, making driving easier in slushy or bogged-down conditions.

The FZ comes with anti-roll bar in front with the wider wheel track to maintain stability when tall loads raise the center of gravity.
Bring on the heavy loads with taller stacks and more main and helper springs, increasing the load-carrying capability of the laminated, multi-leaf rear suspension.

Longer service intervals means less downtime, making your business more profitable.

Vehicle specifications may vary by market. Please contact your local certified FUSO dealer for more information.

The post FZ appeared first on Mitsubishi Fuso Truck and Bus Corporation.

TV

usnadmin — Sun, 15 Dec 2019 05:50:37 +0000

33.5t

GVW Gross Vehicle Weight
295kW

Maximum Output
11.97Lt

Displacement

Highlights

ECU-controlled fuel injection
Powder-coated muscular chassis
Durable gearbox
Spacious, luxurious cabin
Paddle-gear shift

Powerful Pull Drive Success

When the haulage demands are heavy and the conditions are tough, FUSO’s TV rigid and tractor-head heavy duty trucks are just the tool for the job.

Built to continuously perform with high-volume air-cleaner for punishing environments, twin 400mm-clutch discs for increased life, greater main-to-counter-shaft distance for increased maneuverability when fully loaded.

Clever design choices like high-mount air brake chamber for maximum clearance over rough roads and shot-blasted and powder-coated chassis to keep rust at bay, mean lower running costs and longer service life.

Generously appointed cabin interior including steering-wheel-mounted paddle shifter combined with a power-shift transmission delivers stress-free driving under every traffic condition.

Vehicle specifications may vary by market. Please contact your local certified FUSO dealer for more information.

The post TV appeared first on Mitsubishi Fuso Truck and Bus Corporation.

Canter

usnadmin — Thu, 11 Jul 2019 09:31:02 +0000

Overview
Safety
Performance
Interior
Variations

Brochure

INTRODUCTION

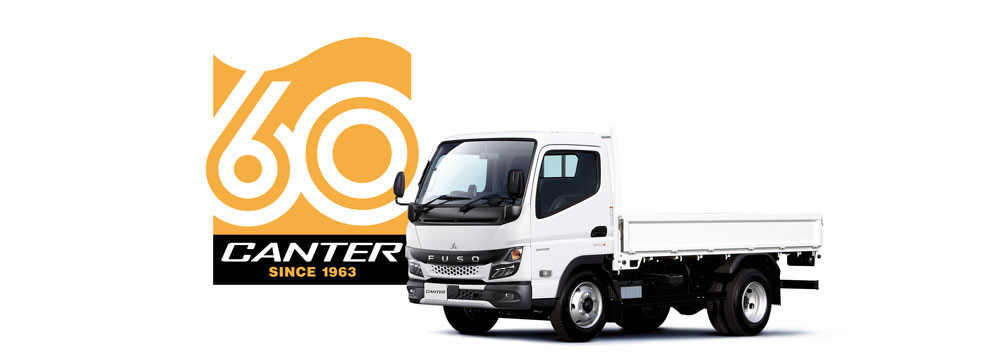

Delivering for Businesses Around the World for 60 Years

The Canter has been refined to offer a new type of driving experience that delivers safety and peace of mind to those in, and outside the vehicle. It is equipped with advanced functions that support safe daily driving and pursues user-friendly functions and comfortable, fatigue-free driving. Its front face is refined with the signature FUSO “black belt” design, symbolizing its upgraded capabilities.

The First Light-duty Truck in Japan*1 with Active Side Guard Assist Standard

Taking Safe Performance to a New Level

For the first time in Japan, Mitsubishi Fuso’s unique Active Sideguard Assist, which reduces the risk of accidents involving left-turning vehicles, is now standard equipment on light-duty trucks. When turning or changing lanes to the left, the system predicts the area where the vehicle will pass and detects objects within the area. When the driver operates the steering wheel or blinker, a warning buzzer and a warning light on the passenger side door pillar alert the driver. In addition, the system detects vehicles and pedestrians in front of the vehicle*2 and assists the driver in avoiding a collision or mitigating damage from a collision by using the Advanced Emergency Braking System (AEBS). Electronic Stability Program (ESP®) helps detecting any risk of skidding or overturning on corners. Lane Departure Warning System (LDWS)*4, which alerts the driver when a vehicle departs from its lane without giving a directional signal to minimize the risk of an accident, and various other safety features support safe and nimble driving to make daily work safer and more enjoyable. *5

*1: As of October 2020, Source: Mitsubishi Fuso Truck and Bus Corporation data. *2: Only moving people are detected. *3: ESP is a registered trademark of Mercedes-Benz Group AG. *4: The system is activated when the vehicle speed exceeds 60km/h. *5: Certain conditions apply to the operation of each safety feature.

Our Never-Ending Quest for Better Economic and Environmental Performance

The 4P10, the high-performance 3L engine that supports the Canter®’s powerful driving performance, has evolved into the 4P10+. Based on the Euro VI engine, which has a proven track record in Europe, the ATS, oil pan and turbocharger have been improved. In addition to realizing even better fuel economy, the new engine also contributes greatly to improved engine reliability. In addition, we have introduced the EX Plan, which extends the warranty on specific parts such as the engine itself to 8 years/180,000 km, to support peace of mind for even longer.

LED Lights for Safer Operation Regardless of Roads, Weather or Time of Day

LEDs have been adopted for the headlights and door-side side turn lamps. The fog lights that have been available as an option have also been changed to LED. The bright white light improves visibility at night, making it easier to spot obstacles and other objects and supporting good visibility. They also contribute to lower running costs by saving power and extending service life. The headlights are equipped with a leveling switch to adjust the optical axis angle.

LED headlights*1, LED door-mounted turn signals*2, LED fog lamps*3 support driving visibility at night and in bad weather.

*1 Halogen headlights are also available (optional). *2 LEDs are used on the door side and incandescent bulbs are used on the front side. *3 Available as an option.

FUSO Easy Access System*1 Makes Repeated Vehicle Access a Breeze

Doors can be locked and unlocked by simply pressing the switch on the door handle while the FUSO Easy Access Key is in your pocket or nearby. The doors can also be locked and unlocked by remote control. To start the engine, simply push and turn the engine switch located on the steering column. This system can be used conveniently for deliveries in the city and other operations that require getting in and out of the vehicle, starting and stopping the vehicle repeatedly.

A System With Theft-Prevention in Mind
The FUSO Easy Access Key is also equipped with an immobilizer (anti-theft device) function. A mechanical key is also available in case the battery should run out.

*1 Standard equipment on all models (optionally available without)
* Even if the FUSO Easy Access Key is within the operating range, it may not work properly if it is too close to the door glass or handle. Please refer to the instruction manual for details. Do not place devices such as an implanted cardiac pacemaker within approximately 22 cm of the vehicle’s transmitter, as this may affect the device. For details, please consult your nearest Mitsubishi Fuso dealer.

FUSO Easy Access Key

Lock/Unlock Switch

Engine Switch

Find Your Local FUSO Dealer Now!

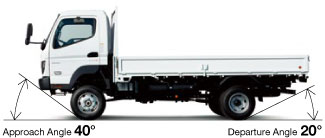

Approach Angle/Departure Angle (Wide Cab 4WD Models)

Overcome Tough Road Conditions with 4WD

Stable City-Driving Even in Bad Weather. Standard Cab All Low-floor Full-time 4WD.
Full-time 4WD means no need to switch between 2WD and 4WD. The center differential distributes driving force to the front and rear wheels in the normal ratio of 30:70. In addition, the center differential absorbs the difference in rotation between the front and rear wheels for added stability. The tight corner braking phenomenon during low-speed turning is also eliminated.

Available on Vehicles Over 5 Tons Gross Vehicle Weight (GVW)
All low-floor full-time 4WD (standard cab) models are available with a GVW of over 5 tons, which boasts a generous load capacity. All models are equipped with an independent front suspension system for superior ride comfort.

Viscous LSD
When a difference in rotation occurs due to slippage in either the front or rear wheels, the viscous LSD restricts operation to ensure stable driving.

Minimum Turning Radius 5.1m (For some standard-bodied models)
The minimum turning radius is 5.1m, making it easy to maneuver. It is also suitable for delivery work in narrow city areas.

All Low-Floor Body for Easy Loading/Unloading with Generous Cargo Bed Length
The standard body has a generous cargo bed length of 3.1m. It is also equipped with flat small-diameter radial tires on the front and rear wheels, and the low floor level makes for smooth cargo handling.

Full-time 4WD vehicles are mainly designed for general driving in urban areas. They have a low minimum ground clearance and are not designed for driving on uneven terrain. It is effective for driving on snow-covered or icy roads, but please avoid overconfident driving on 4WD.

Newfound Transparency for Your Vehicle Operations with Truckonnect®

Position and Trajectory

Displays real-time position on a map and grasps the vehicle trajectory, including the route taken and the time it has parked or stopped.

Safe Driving Information

Detects sudden acceleration and braking, and displays on the screen when there is a tendency of dangerous driving.

Fuel Efficiency Information

Automatically calculates and compiles downloadable data of daily and monthly fuel consumption.

Fleet Management

Allows you to grasp the operating status of your vehicles and compare past and current months’ driving and idling time.

Remote Diagnosis

Detects diagnostic trouble codes (DTCs) that signal engine failure and notifies you in real time.

Geo-Fencing Functionality

Real-time notification when a vehicle enters or exits a specific pre-registered area, improving operational processes and efficiency.

Feedback from Our Valued Customer Continue to Drive Improvements to Truckonnect®

Details for Truckonnect® (Japanese only)

*Truckonnect® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation. Registration is required to start the Truck Connect service. Upon completion of the registration, an operation manager account will be communicated to you and you will be able to use it. For more details, please contact your local dealer or sales representative.

TOTAL SAFETY

Peace of Mind Comes Standard

Active Sideguard Assist®

Minimizing Risks During Left Turns

When making a left turn or changing lanes to the left, the system uses lateral millimeter wave radar to detect obstacles within the predicted passing range of the vehicle. The warning lamp on the passenger door pillar will light up yellow to alert the driver. If the driver swerves or turns left with the indicator, a buzzer sounds and the warning lamp flashes red. This innovative system monitors the left side of the vehicle, which is often a blind spot when driving, and actively supports safe driving.

*1 As of September 2020, according to Mitsubishi Fuso Truck and Bus Corporation data.
* Also available with reduced options. Additionally, the loader dump truck, 4-ton dump truck, 4WD truck, and cab back crane truck will not be equipped with this feature.
* Some models may not be available depending on the installation or options. For details, please contact your nearest Mitsubishi Fuso dealer.
* Active Sideguard Assist® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

■ Active Sideguard Assist helps prevent driver errors and alerts in case a driver falls asleep or loses track of the road. There is a limit to the recognition performance. Do not overestimate the system, always check the safety of your surroundings when driving, and drive safely.

■ Primary warning: When an obstacle on the left side of the vehicle is detected, the lamp turns yellow.
■ Secondary warning (photo): If the driver continues to steer to the left or put on the left turn indicator, the lamp will flash red with a warning buzzer.

Including Cut-Off Functionality
While the function is deactivated, the LED symbol in the meter lights up. It will switch on when the engine is restarted.

Advanced Emergency Braking System (AEBS) *1

System-Enabled Vehicle and Pedestrian Recognition Helps Prevent Accidents

The high-precision millimeter-wave radar mounted on the front bumper detects moving and stationary vehicles and pedestrians*2 in front. When a potential collision is detected, the system alerts the driver according to the distance and driving conditions, and automatically activates the brakes*3 to help avoid or mitigate damage from a collision. When AEBS is activated, the Ivis® (Multi-Information System) display in the instrument cluster warns the driver and the warning lamp flashes.

*1: Standard equipment on all models except Wide Cab 4WD models.
*2: Detects moving persons only.
*3: Specific conditions apply for operation. *Ivis® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

■ AEBS may not work depending on the situation of the vehicle in front or pedestrians, road conditions, weather, vehicle condition, driver condition, etc. Please refer to the instruction manual for details.
■ AEBS is not designed to avoid collision or mitigate collision damage in all situations and its recognition and control performance is limited. When driving, be sure to check the safety of your surroundings and keep an adequate distance between vehicles.

Electronic Stability Program (ESP®) *1

Skid and Rollover Prevention in Curves

A sensor constantly detects the vehicle’s posture. If there is a risk of skidding or rolling over on a curve, the system optimally controls the engine drive power and braking power of all four wheels to help the driver adjust the vehicle’s posture and avoid skidding or rollover. An ESP® cut switch is also provided to deactivate the function, and an ESP® OFF warning lamp clearly informs the driver of the OFF status or malfunction.

*1 Standard equipment on all vehicles except wide cab 4WD vehicles.
* ESP® is a registered trademark of Mercedes-Benz Group AG.

ESP® is not a device that allows you to drive beyond your limits; ESP® is effective only when the grip of the tires does not exceed its limits. Do not overestimate the effectiveness of ESP®, and be sure to drive safely by slowing down sufficiently on slippery roads and before curves.

Find Your Local FUSO Dealer Now!

Lane Departure Warning System (LDWS)

Promptly Warns the Driver Upon Lane Deviation

When a vehicle deviates from its lane on an expressway or other road without operating the turn signal, the white line recognition camera*1 detects the deviation. The system alerts the driver with a buzzer and an Ivis (multi-information system) in the instrument cluster to encourage safe driving. A cut-off switch is also provided to deactivate the function. A warning lamp is also provided to indicate that the system is off or malfunctioning.

*1: Yellow lines are also recognized.

■ LDWS is activated at a vehicle speed of 60km/h or higher. For details, please refer to the instruction manual.
■ The LDWS is designed to assist in safe driving and is not a device that enables drivers to fall asleep or look over their shoulder. LDWS cannot assist in driving when white or yellow lines cannot be recognized, such as in snowfall, snow accumulation, flooding, backlighting or when visibility is poor, such as in rain or fog. Please operate the steering wheel according to the surrounding conditions and drive safely.

Front Passenger Seat with Large Two-Way Mirror
(Electric Retraction Type/Manual Retraction Type) *1
The left side of the vehicle is reflected in the lower wide-angle mirror, widening the field of vision. This contributes to preventing accidents when turning left and assists in safety when changing lanes.

*1: Electric or manual folding type is available as an option for all models except double cab models.
* Some models are not available. Please contact your nearest Mitsubishi Fuso dealer for the model in question.

Hill Start Assist Function
(Vehicles Equipped with DUONIC 2.0)
When starting up on an incline, the system temporarily holds the braking force while the driver moves the foot from the brake pedal to the accelerator pedal. This prevents the vehicle from backing up.

Electric Parking Brake (EPB)
(Optional *1)
The electric motor assists to achieve a light operating force. Stable braking force can be maintained even when parking on a slope.

*1: Available as an option for single-cab models in the 2.0-ton class and above.

Other Equipment

All-Wheel Disc Brakes *1
All wheels are equipped with disc brakes that provide excellent heat dissipation and are less prone to abrasion.

*1: Standard equipment on 2WD and standard cab 4WD models.
* Wide cab 4WD vehicles have drum brakes on all wheels.

Brake Wear Indicator *1
When the brake pads are excessively worn, the sensor in the pad will react and the indicator in the meter will light up.

*1: Drum brake vehicles excluded.

EZGO® (Optional for Manual Transmission Models)
After stopping the vehicle on an uphill road, the braking force can be retained even when the foot is removed from the brake pedal.

* The parking support system is not equipped.
* EZGO® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

Brake Override System (Brake Priority Control)
If the brake pedal is pressed while the accelerator pedal is depressed, the brake takes priority over the accelerator pedal.

* If the accelerator pedal is pressed when the brake pedal is pressed first, no special control will be applied.

PERFORMANCE

An Engine That Respects the Environment, Your Fuel and Your Trust.

3ℓ DOHC 16-VALVE INTERCOOLER TURBO
4P10+ 2.998L Engine (Inline 4 Cylinder Intercooled Turbo)

4P10＋（T1）
81kW (110PS) /
2,130rpm
430N･m (43.8kgf･m) /
1,600rpm

4P10＋（T2）
96kW (130PS) /
2,130rpm
430N･m (43.8kgf･m) /
1,600～2,130rpm

4P10＋（T4）
110kW (150PS) /
2,440rpm
430N･m (43.8kgf･m) /
1,600～2,440rpm

4P10＋（T6）
129kW (175PS) /
2,860rpm
430N･m (43.8kgf･m) /
1,600～2,860rpm

Optimized for Fuel Consumption and Environmental Friendliness

We have refined the 4P10+ engine to supports excellent economy, stable operation and driving performance. Engine oil capacity has been increased, and the piston rings, injectors, turbocharger, exhaust after-treatment system and other parts have been improved. The result is high dynamic performance, environmental and economic performance and outstanding durability and reliability.

Top-of-Class Performance

All models meet the 2015 heavy-duty vehicle fuel efficiency standards. The 1.5-ton load model surpasses fuel consumption standards by 15%, and most other models achieve +10%. All vehicles comply with the 2008 exhaust gas regulations. In addition, all vehicles have been certified as low-emission vehicles designated by nine Japanese prefectures and cities (ultra-low emission vehicles under the 2009 standards).

Compatible with advanced on-board failure diagnostic equipment [J-OBDII] *1

The system is compatible with highly precise emission reduction technologies. In the event of an abnormality, the system displays an alarm and stores the details of the failure in the system.

*1 Vehicles with a gross vehicle weight of over 7.5 tons

Find Your Local FUSO Dealer Now!

BlueTec® Combines Three Technologies to Achieve Best Fuel Efficiency and Environmental Performance

High Performance 3L Engine 4P10+ BlueTec® Exhaust Aftertreatment System Regenerative DPF®

■ BlueTec® Exhaust Aftertreatment System
AdBlue® (aqueous urea) is injected to decompose NOx in the exhaust gas through a chemical reaction, resulting in significant NOx reduction.

■ Regenerative DPF
Significantly reduces PM in exhaust gas. We have also refined the high practicality of the system by extending the regeneration interval and suppressing oil dilution.

* BlueTec® is a registered trademark of Daimler AG.
* AdBlue® and AdBlue® are registered trademarks of the German Automobile Manufacturers Association.

Dual Clutch Powerful Driving Performance with Smooth Gear Shifting

By instantly switching between the two clutches, power transmission efficiency is maximized, resulting in excellent fuel efficiency and easy two-pedal driving. It can be driven with an automatic limited license, contributing to reduced driving fatigue. It is also possible to switch to manual mode by operating the gearshift.

■ Creep function: Smooth running at low speed on platforms.
■ P (parking) range*1: Allows you to lock the transmission’s internal gears when parking.
■ Clutch maintenance-free*2 : No need to replace the clutch periodically.

*1 When parking the car, be sure to pull the parking brake lever first and then shift into the P range.
*2 It is necessary to replace the ATF (automatic transmission fluid).

* AMT: Automated Manual Transmission (mechanical automatic transmission)
* DUONIC® is a registered trademark of Daimler AG.
* DPF® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation.

COMFORT

An Interior Focused on the Business of Driving

Comfortable Interior and Fatigue-Resistant Seats for Daily Driving
The interior has been designed to provide a comfortable feel, ease of driving and reduce fatigue. In addition to the highly visible gauges, the layout of switches allows for immediate response to operations while driving, and the room mirror complies with new safety standards. The driver’s seat has side support for better hold, and the large seat cushion supports the body, preventing fatigue after long hours of driving.

Generous Space With Room to Move
The instrument panel, gear shift and retractable parking brake levers provide more space under the instrument panel, allowing smooth movement between the driver and passenger seats.

Functional and Easy-to-Use Storage
A variety of storage functions are available, including an overhead shelf*1, floor console (with bag hooks), center tray and magazine rack. These easy-to-use features provide comfortable support for your daily work.

*1 The Standard model is equipped on the driver’s side, while the Custom model is equipped on the driver’s and passenger’s sides.

Overhead Shelf (Driver’s Side)

Floor Console (With Bag Hook)

Center Tray, Magazine Rack

FUSO Easy Access System*1 Makes Repeated Vehicle Access a Breeze

FUSO Easy Access Key

Lock/Unlock Switch

Engine Switch

Find Your Local FUSO Dealer Now!

Features That Ease Your Daily Work

Bluetooth®-Supported Audio Functionality

Connect your smartphone and other devices to the on-board audio player via Bluetooth®, an auxiliary jack and a USB slot, allowing you to play MP3/WMA audio files. Phone calls can be taken using the Bluetooth® hands-free function. AM/FM tuner radio with alarm function.

* The Bluetooth® word mark and logo are registered trademarks and are the property of Bluetooth SIG, Inc. Mitsubishi Fuso Truck and Bus Corporation uses these marks and logos under license.
* WMA (Windows Media Audio) is a trademark or registered trademark of Microsoft Corporation in the United States and other countries.

BODY VARIATIONS

With Versatility Like This, It’s No Wonder It’s Reached Legendary Status

Cargo

Canter EX Cargo

D-VAN/D-WING

Reefer/Refrigerator

Dump

Carrier Car

For further details, please refer to the relevant page of the Catalog (Japanese only)

NEW!

The 1.5-Ton Manual Transmission Canter is Back!

The Canter 1.5-ton-class (2WD model) has been reborn with enhanced safety and comfort features. The long-awaited manual transmission model is back after a ten-year absence. With a more flexible driving feel and a more powerful engine, this model is recommended for customers who are particular about driving performance.

For more details, please see the relevant page of the Catalog (Japanese only)

Cab Variations

The FUSO Canter comes in single or double cab variants to suit your business needs.

Cab Width & Roof Height

Standard

Standard Variant Equipment

For Details Click Here

LED headlights
LED turn signal lamps (door-mounted)
Manual retractable mirror stays (right and left, EX is driver’s side only)
Variable intermittent wiper with time adjustment
Full interior trim (semi-trim for double cab)
Floor carpet (needle punch)
Driver’s seat with reclining and sliding mechanism
Driver’s SRS airbag system
3-point ELR seat belt with EA and pretensioner (driver’s seat)
Manual air conditioner
Bluetooth®-enabled audio
FUSO Easy Access System
Driver’s seat armrest
2-DIN box with lid (with cup holder)
Compact floor console (with bag hook) (standard cab)
Large floor console (wide cab, EX)
Center tray, magazine rack *1
Active Sideguard Assist
Hill Start Assist function (DUONIC vehicles)
Brake wear indicator (not available on Wide Cab 4WD models)
Collision Damage Mitigation Brake (AEBS) (not available on Wide Cab 4WD models)
Electronic Stability Program (ESP®) (not available on Wide Cab 4WD models)
Lane Departure Warning System (LDWS)

*1 When the optional vinyl leather seats are selected, the center tray and magazine rack are not installed.

Custom

Custom (Option) Exclusive Equipment

For Details Click Here

In addition to the standard model features, the following Custom (optional) exclusive features are added:

LED fog lights
Floor carpet (cut pile)
Moquette seat with driver’s seat reclining and sliding mechanism
Driver’s seat with lumbar support
Driver’s seat: Magnetic suspension seat (wide cab vehicles)
Overhead shelf (passenger seat)
Passenger side sun visor
Large room lamp with spotlight (bulb type)
Fully automatic air conditioner
Glovebox with key (standard cab models)
Glovebox and small tray with key (wide cab models)
Plated grill
Plated bumper
Plated corner panel
Right and left step lamps

* Custom not available for wide cab 4WD models and double cab models; Custom (optional) exclusive equipment available upon order.

Textile Variations

Color Variations

* All variations are available for cargo; some variations are available for D VAN, D WING, refrigerator/refrigerator vans, dump trucks and carrier cars.
* The seat fabric and body color may look different from the actual color.

Vehicle specifications may vary by market, please contact your local authorized FUSO dealer for details.

The post Canter appeared first on Mitsubishi Fuso Truck and Bus Corporation.

Fighter

usnadmin — Thu, 11 Jul 2019 09:29:51 +0000

Overview
Safety
Performance
Interior
Variations

Brochure

INTRODUCTION

Redefining Everything a Truck can be, a New Era of Evolution

In search of the ideal of trucks, Fighter® is now entering a new area of evolution. Introducing an advanced preventive safety system for safe transportation that should be prioritized above all. In addition, we pursued comfortable driving based on people and a new level of efficiency and economy. And we have a full lineup of models with 4-cylinder engine and 6-cylinder engine. Fighter® that meets the enthusiastic demands of professional drivers in every operating scene. The more you run, the more you can feel its true value.

Active Brake Assist 5 (ABA5)

Detects vehicles and pedestrians and reduces collision damage with warnings and brakes. Detects the danger of collision and reduces damage with warnings and brakes. The front recognition camera and high-precision millimeter-wave radar detect the traffic situation ahead. When there is a risk of collision with a running vehicle, a stationary vehicle, a pedestrian, etc., an alarm buzzer and a monitor display in the meter give an alarm according to the distance to the target and the driving situation, and the driver’s collision avoidance operation is performed. Prompt. In addition, it activates the brakes as needed to help avoid collisions or mitigate damage.

ABA5 collision avoidance image

Supports collision avoidance and collision damage mitigation by alarm and automatic braking. Depending on the degree of urgency, it may start from 2nd STEP.

ABA5 is a system that assumes the driver is driving safely, and does not avoid collisions or mitigate collision damage in all situations. The system has limitations, such as not responding depending on the shape, direction, and other conditions of obstacles in front. When driving, always check the safety of your surroundings and keep a sufficient distance between vehicles. For details, please refer to the instruction manual.

High-Load Straight-Four or Powerful Straight-Six

A lightweight 4-cylinder 4V20 engine that pursues high loading and low fuel consumption is installed in GVW 7.5t and 8t vehicles. The high-power, 6-cylinder 6M60 engine with plenty of room is available from GVW 8t vehicles to 20t class.

4V20
3.907ℓ INLINE-4 INTERCOOLER TURBO ENGINE
(Straight 4 intercooler turbo) Total displacement: 3.907L

6M60
7.545ℓ INLINE-6 INTERCOOLER TURBO ENGINE
(Straight 6 intercooled turbo) Total displacement: 7.545L

Newfound Transparency for Your Vehicle Operations with Truckonnect®

Position and Trajectory

Displays real-time position on a map and grasps the vehicle trajectory, including the route taken and the time it has parked or stopped.

Safe Driving Information

Detects sudden acceleration and braking, and displays on the screen when there is a tendency of dangerous driving.

Fuel Efficiency Information

Automatically calculates and compiles downloadable data of daily and monthly fuel consumption.

Fleet Management

Allows you to grasp the operating status of your vehicles and compare past and current months’ driving and idling time.

Remote Diagnosis

Detects diagnostic trouble codes (DTCs) that signal engine failure and notifies you in real time.

Geo-Fencing Functionality

Real-time notification when a vehicle enters or exits a specific pre-registered area, improving operational processes and efficiency.

Feedback from Our Valued Customer Continue to Drive Improvements to Truckonnect®

Details for Truckonnect® (Japanese only)

TOTAL SAFETY

Enabling Safer Transportation with Advanced Preventative Safety Systems

Active Brake Assist 5 (ABA5)

The system detects vehicles and pedestrians and mitigates collision damage by warning and braking. The system detects the danger of collision and mitigates the damage by warning and braking. Detects traffic conditions in front of the vehicle using a front-viewing camera and high-precision millimeter wave radar. When there is a risk of collision with a moving vehicle, stationary vehicle, pedestrian, etc., the system alerts the driver with a warning buzzer and a monitor display in the instrument panel, depending on the distance to the target and the driving conditions, to encourage the driver to avoid a collision. The system also activates the brakes as necessary to help the driver avoid a collision or mitigate damage.

ABA5 Collision Avoidance Illustration
The system supports collision avoidance and mitigation by alerting the driver and activating the automatic brakes. Depending on the degree of emergency, the system may start from the 2nd STEP.

Active Sideguard Assist®

Reduces the risk of left-turn entrapment accidents. When making a left turn or changing lanes to the left, the system predicts the area where the vehicle will pass and detects objects within the area. When a danger is detected, the warning lamp on the passenger door pillar lights up in yellow to alert the driver. If the driver continues to steer to the left or turn left, the warning buzzer sounds and the warning lamp flashes red to warn the driver. This system actively supports safe driving by monitoring blind spots during operation.

* The factory-installed option is not available for all models
* Active Sideguard Assist® is a registered trademark of Mitsubishi Fuso Truck and Bus Corporation

■ Active Sideguard Assist Detection Illustration

■ Detection Range
It covers a wide range of detection, except for a small portion in the front of the vehicle (part A) and the rear of the vehicle (part B).

The dimensions of Part A and Part B differ slightly depending on the specifications of the vehicle.

Active Sideguard Assist assists the driver in preventing false recognition and does not enable the driver to fall asleep or look away. There is a limit to the recognition performance. Do not overestimate the system, and always check the safety of your surroundings and drive safely. For details, please refer to the instruction manual.

Moving Toward a Safer Driving Experience Without Compromise

■ Attention Assist Function Illustration

Attention Assist

The system monitors the driver’s attention span and warns the driver. When driving at high speed, the system monitors the driver’s alertness based on the vehicle’s wobble detected by the white line recognition camera*1 and the status of steering wheel, indicator, and brake operations. When the driver’s attention level drops, the system warns the driver with an in-meter monitor and buzzer as necessary. The vehicle is also equipped with a lane departure warning system (LDWS*2), which warns and alerts the driver if the vehicle deviates from its lane.

*1 The system also recognizes yellow lines.
*2 LDWS: Lane Departure Warning System
*Attention Assist is activated at speeds of 60 km/h or higher. The Lane Departure Warning System (LDWS) is included in the Attention Assist function. It also complies with the legal requirements for LDWS installation.

Attention Assist is a system that notifies the driver of a decrease in driving attention and assists in safe driving. Please do not overestimate the system, and try to drive safely by taking appropriate rest as needed while driving. The system does not work when driving at low speeds. The lane departure warning system (LDWS) is an aid to safe driving, and is not a device that enables you to fall asleep or drive blindly. It also cannot assist in driving when white or yellow lines cannot be recognized, such as in snowfall, snow accumulation, flooding, or backlighting, or when visibility is poor, such as in rain or fog. Please operate the steering wheel according to the surrounding conditions and drive safely. For details, please refer to the instruction manual.

■ ESP® Control Illustration

ESP® (Electronic Stability Program)

The system stabilizes the vehicle and prevents skidding and rollover accidents. Sensors constantly detect the posture of the vehicle as it travels. The system warns the driver if the vehicle’s posture becomes unstable due to changes in steering operation and vehicle behavior during curves and lane changes. In addition, if the system determines that there is a risk of skidding or rolling over, it controls the engine torque and brakes to guide the vehicle in a stable direction. The system assists the driver in avoiding danger. An ESP® cut switch is also provided to cancel the operation.

* ESP® is a registered trademark of Daimler AG.

ESP® is not a device that allows you to drive beyond your limits; the effect of ESP® is only achieved when the grip of the tires does not exceed its limits. Please do not overestimate ESP®, and be sure to drive safely by slowing down sufficiently on slippery surfaces and before curves. For details, please refer to the instruction manual.

HID Headlamps for Enhanced Night Vision
High-intensity-discharge headlamps, which provide approximately twice the illumination of halogen headlamps and a color close to that of natural light, are standard equipment on vehicles with lower headlamps (Cargo series only).

FUP and RUP Standard
In the event of a collision, the Front Underrun Protection (FUP) prevents passenger cars and other vehicles from diving into the front of the truck, thereby reducing collision damage, and the Rush Underrun Protection (RUP), which complies with ECE regulations, is standard equipment.

Front bumper removed for illustration purposes.

Brake Override System
When the brake pedal is pressed while the accelerator pedal is depressed, the brake system takes precedence. The system is designed to be fail-safe in the event of an emergency.

Electromagnetic Retarder
An electromagnetic retarder, which provides excellent deceleration and extends the life of brake linings, is available as a factory-installed option for cargo models (except some models).

Robust Safety Cab for Occupant Protection in Collision
The robust cab body of the Fighter has achieved high cab rigidity. Not only does it provide excellent ride comfort, but it also reduces cab deformation in the event of a collision, contributing to securing the survival space for the occupants.

PERFORMANCE

High-Load Straight-Four or Powerful Straight-Six

4V20
3.907ℓ INLINE-4 INTERCOOLER TURBO ENGINE
(Straight-4 intercooler turbo) Total displacement: 3.907L

The straight-four turbocharger provides economical transportation with high payload.

Engine Details

4V20 170PS
125kW (170PS)/2,500rpm
520N･ｍ (53kgf･ｍ)/1,500rpm

Pursuing high loading capacity and low fuel consumption.
The lightweight 4-cylinder 4V20 engine is installed in the GVW 7.5-ton and 8-ton models.

Highest Loading Capacity in the GVW8t Class due to Weight Reduction
Vehicles equipped with the lightweight, small-displacement 4V20 engine significantly reduce the weight of the cabbed chassis, achieving the highest level of loading in the GVW8t class.

High Reliability with Small Displacement Engine
It has passed the durability tests required by the strict medium-duty truck standards to achieve high performance and high reliability. It is also equipped with an electric exhaust brake, ensuring excellent auxiliary braking performance despite its small displacement.

Performance Above Fuel Efficiency Standards
All models with the 4V20 engine achieve a fuel efficiency level of 5% above the FY2015 heavy-duty vehicle fuel efficiency standard.

Equipped with Fuso Launch Assist to Improve Launch Performance
Fuso Launch Assist is a standard feature on the 4V20 engine models to ensure smooth starting when loaded. When the switch is turned on, the engine speed is increased compared to the normal speed to ensure better starting performance.

6M60
7.545ℓ INLINE-6 INTERCOOLER TURBO ENGINE
(Straight 6 intercooled turbo) Total displacement: 7.545L

For high-volume, high-quality transportation, the straight-six turbo is the way to go.

Engine Details

6M60-T4 220PS
162kW (220PS)/2,070rpm
745N･m (76kgf･m)/950-2,070rpm

6M60-T5 240PS
177kW (240PS)/2,270rpm
745N･m (76kgf･m)/950-2,270rpm

6M60-T6 270PS
199kW (270PS)/2,500rpm
785N･m (80kgf･m)/1,100-2,400rpm

High power with plenty of room to spare.
The 6-cylinder 6M60 engine is available for GVW 8t to 20t classes.

High power and high torque straight-six turbo engine
The inline 6-cylinder turbocharged 6M60 engine is available in three types. The 6M60 engine has a flat maximum torque range for a powerful and stress-free driving experience.

Advanced engine technology
It features a common-rail fuel injection system that improves combustion efficiency and EGR control that enhances NOx reduction. The 6M60 engine also features a VG turbocharger that delivers full torque from low speeds.

FY2015 Heavy-Duty Vehicle Fuel Efficiency Standards
All models with the 6M60 engine, except the FQ, achieve fuel economy that meets Japan’s 2015 heavy-duty vehicle fuel economy standards.

Compatible with Advanced On-Board Diagnosis System [J-OBDII]

The on-board fault diagnosis system has been upgraded in response to the increasingly sophisticated and precise emission reduction technologies. The system detects and monitors abnormalities in emission control equipment, and in the event of an abnormality, the system displays an alarm to inform the driver and stores the details of the failure in the system.

Realize Even Greater Fuel Savings with ISS

The ISS (Idling Stop & Start) system, which reduces wasteful fuel consumption and emissions, is now standard equipment on all 4V20 engine models and on 6M60 engine models with FK (GVW8t) of 177 kW (240 PS) or higher*. The system is designed to improve fuel economy.

^{* A factory-installed option for some cargo models (excluding FQ).

* The standard ISS is automatically activated when the engine key is turned on.}

Pursuit of Clean Performance and Low Fuel Consumption Through Advanced Technology

BlueTec®, Our Environmental Technology of Choice

BlueTec® Technology has been evolved with the most advanced level of environmental technology for further environmental friendliness. The BlueTec® Technology achieves both high environmental performance and fuel efficiency at the top level in its class, and is a step ahead in environmental performance to meet the trust of shippers.

* BlueTec® is a registered trademark of Daimler AG.
* AdBlue® is a registered trademark of the German Automobile Manufacturers Association.

■ Regenerative DPF
The regeneration-controlled DPF, which significantly reduces PM, reduces the frequency of regeneration and considers fuel consumption and operation. The amount of PM accumulation and regeneration status can be checked on the display of the meter cluster.

■ BlueTec®
NOx is decomposed by AdBlue® (urea water) and a catalyst. This allows for highly efficient combustion on the engine side, leading to improved fuel efficiency and dynamic performance, as well as reduced CO2 emissions.

Welcome to a New Era of Fleet Management

Digital Tachograph with Remote Data Management*

High-precision operation records with digital information are possible, and information management is extremely easy. Network digital signals are also supported, and data can be easily obtained from a PC through linkage with Truck Connect.

^{* Standard equipment on GVW models over 11t (non-equipped option available), optional equipment on GVW models 7.5t and 8t.}

Offline mode: Use as a stand-alone digital tachograph
Can be used even without a Truck Connect contract. Information is recorded on the SD card in the digital tachograph.

Online Mode: Combination with Truckonnect *
This mode links digital tachographs with the powerful Truckonnect tool and directly tap into its analytics power for unprecedented transparency. The information is stored on an external server via a mobile line and can be downloaded and checked in real time with the driver’s ID from the dedicated Truckonnect page.

*A separate paid contract is required.

COMFORT

Stylish and Functional for a Supreme Driving Experience

Superior Driver-Friendly Ease of Entry and Exit
The doors open at an angle of almost 90 degrees, large assist grips are used, and wide steps with optimal step height ensure excellent accessibility. Consideration has been given to the daily operation of the vehicle.

A Seat Design Focused on Comfort and Less Fatigue
The driver’s seat provides a high level of hold with a well-fitting seatback and large side supports. This greatly reduces driving fatigue. There are three types of interior specifications to choose from, and the Premium Line (optional specification) features a driver seat heater.

Steering Wheel Switches

A variety of operations are possible with buttons right at your fingertips. This operation requires less eye movement and contributes to safer driving.

Left Side
● Multi-function monitor menu controls
● Radio volume control
● Air suspension ride height adjustment
● Engine speed adjustment

Right Side
● Telephone controls
● Auto-cruise adjustment

Meter Cluster with Multi-Function Monitor

A 4.1-inch multi-function monitor (large multi-function display) is adopted in the center of the meter cluster. By switching the display, a variety of vehicle information can be easily checked.

Example of various modes displayed on the multi-function monitor

Tour Mode
Mileage, AdBlue Status, DPF Check, etc.

Driving Mode
Speed, Lane Departure Warning Signal, etc.

Information Mode
Alarm Setting, Audio Options, Hands-free Dial etc.

Work Mode
Axle Weight & Air Pressure Check, Air Suspension Adjustment, Maintenance Intervals

Truck-Check Mode
Engine Oil Level, Uptime, etc.

Driver Mode
Settings for Time, Language, Lighting, etc.

Bluetooth® Enabled Audio

Connect your smartphone or other device with Bluetooth® capability for high audio fidelity. You can utilize the auxiliary jack and USB slot, play MP3/WMA audio files, and or tune in to AM/FM tuner radio with an alarm function for a variety of music enjoyment and hands-free phone calls. It is also possible to make hands-free phone calls.

* Bluetooth® is a trademark or registered trademark of Bluetooth SIG, Inc.
* WMA (Windows MediaAudio) is a trademark or registered trademark of Microsoft Corporation in the United States and other countries.

Higher Comfort and Fuel Efficiency with the Full-Auto Cold Storage Air Conditioner

A fully automatic air conditioner with a cold storage system is standard equipment. This improves comfort and contributes to economic efficiency by reducing fuel consumption. In addition to the fully automatic air conditioner that automatically maintains the interior at the set temperature, the coolant storage function cools the coolant in the air conditioner unit while the vehicle is in motion, allowing for short periods of cooling even when the ISS is running, thereby reducing fatigue.

Benefits

Short-term cooling is possible even when the engine is stopped.
By storing cold air in the cold storage in the evaporator while the vehicle is running, it is possible to provide cold air for about one minute even when the engine is stopped (= AC compressor stopped). This is effective when the ISS is activated at traffic lights.

Contributes to reduction of fuel consumption for driving
In environments with low heat load, the extra cooling capacity can be stored in the refrigerant while driving with the gas pedal off, such as when going downhill. This reduces the amount of time the air conditioner is in operation when the gas pedal is on, contributing to reduced fuel consumption.

Standard Model – Default Equipment

Steering Wheel Switch
Key functions at your fingertips help keep your eyes on the road.

Auto-Cruise
Automatically maintains the set vehicle speed on highways and other roads.

Auto-Lighting-System
Detects ambient brightness and automatically adjusts lights.

Fog Lamps
Ensures forward visibility in bad weather conditions such as fog and snowfall.

Wipers with Rain Sensors
Detects raindrops and automatically controls the windshield wipers.

Rear-wheel Parking Brake
Operate the parking brake with the push of a button – easy and stable.

Retractable Mirror Rack
The electrically retractable mirror mount is convenient for narrow roads.

Keyless Entry System
Doors can be easily locked and unlocked from a distance.

Wipers with Rain Sensors
Detects raindrops and automatically controls the windshield wipers.

Rear-wheel Parking Brake
Operate the parking brake with the push of a button – easy and stable.

Retractable Mirror Rack
The electrically retractable mirror mount is convenient for narrow roads.

Keyless Entry System
Doors can be easily locked and unlocked from a distance.

Automatic Cold Storage AC
Provides comfortable temperatures with reduced fuel consumption.

Immobilizer
Restrict engine starting with counterfeit keys. Effective in preventing vehicle theft.

Retractable Cupholder
A retractable cup holder that can be easily folded away when not in use.

LED Interior Lighting
In addition to LED interior lights, personal lamps are standard on both sides of the cab.

Optional Equipment

Aluminum Wheels
Improves load capacity by reducing weight and adds a little color to your vehicle as a bonus. (Photo courtesy of Alcoa)

Power-tarded Brakes
Dramatically increased engine braking power for safer operation.
*199 kW (270 PS) models are standard equipment

Doze-Prevention Device (Accessory Option)
Sensors detect inattentive conditions based on pupil movement and alert the driver.

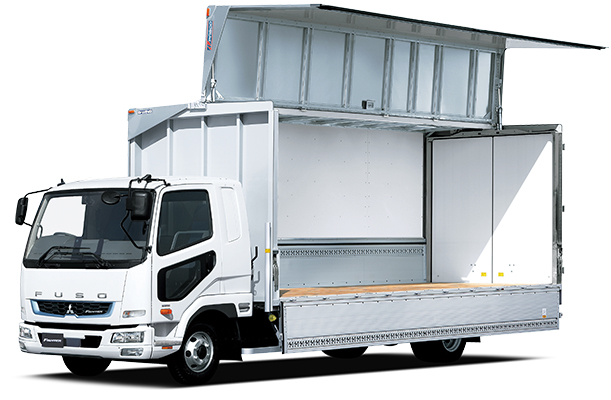

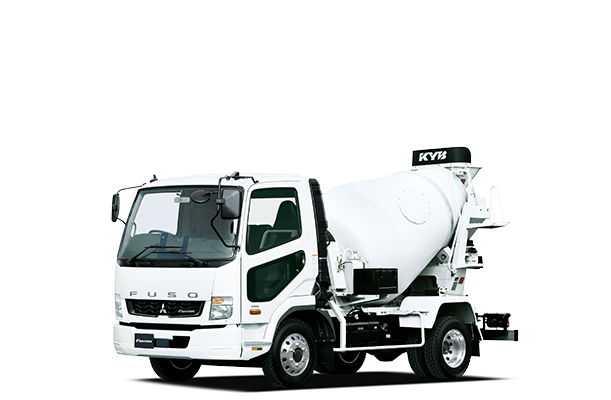

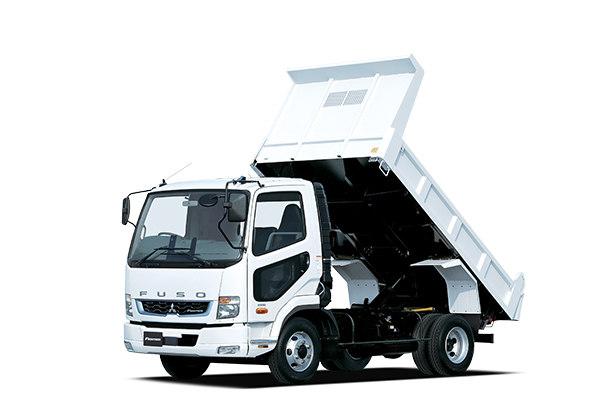

BODY VARIATIONS

Body Variations

A Vehicle That Feels Tailor-made to Your Needs

Our mix-and-match system allows various combinations of cab type, interior and exterior and even body color. You can choose the best Fighter for your application and preference.

Eco Line

An economy model with the latest level of safety systems and simplified equipment.

Eco Line Equipment

Discharge headlamps (standard on vehicles with lower headlamps (Cargo grade only))
Halogen headlamps (standard on vehicles with upper headlight appearance)
Fog lamp
Composite curved side mirrors (electrically foldable on the passenger side)
Headrest-type seat
Fully automatic air conditioner with cold storage
Multi-function monitor
Floor mats (carpet (needle punch) for cargo type / PVC mats for special purpose type)
Bluetooth®-enabled audio
Fluorescent lamp
Powered windows
Centralized door lock
Door ashtray (both sides) & cigar lighter
Large floor console (seatback console for 3-passenger specification)
Beds (except for short cabs and some specially equipped cabs)
Coat hanger
ABS
Driver’s SRS airbag system and seat belt with EA and pretensioner

Pro Line / Premium Line

In addition to the latest level of safety systems, this standard model comes with a full range of popular interior features.

Pro Line / Premium Line Equipment

Main features of the Pro Lineup (features and equipment in addition to the Eco Lineup)

Green glass with shade band
Chrome bumper + Chrome grill + Chrome corner panel
Driver’s seat with armrest and lumbar support
Genuine leather seat upholstery (driver’s seat)
Genuine leather seat upholstery (front passenger seat)
High quality carpet
Black woodgrain panel
Height-adjustable seat belt anchor (passenger side)
Curtains
Driver’s seat under box (passenger’s seat if air suspension seat is used)
Bed pocket (driver’s side & passenger’s side)
Rear pillar grip (driver’s side)
Steering switch section and meter ring in silver

Premium Line main features (features and equipment in addition to the Pro Line)

Headlamp auto-leveling system
Step lamp (driver’s side & passenger’s side)
Electric remote control mirror with heater
Electric Cabtilt
Full floating cab mount
Custom emblems
Air suspension seat with driver’s armrest and lumbar support (with auto-leveling mechanism)
Heated driver seat
Passenger seat under box
Four speakers
Reading lamp

Body Colors

* Additionally, you can choose your favorite cab color (for a fee) with Fuso Genuine Color Paint, which is available in 365 colors.
The basic standard equipment for each grade is fixed. (If the customer does not make a selection, the equipment will be the default equipment of the respective grade)
For details, please consult your nearest Mitsubishi Fuso dealer.

Vehicle specifications may vary by market, please contact your local authorized FUSO dealer for details.

The post Fighter appeared first on Mitsubishi Fuso Truck and Bus Corporation.

FO

usnadmin — Thu, 11 Jul 2019 09:25:08 +0000

31t

GVW Gross Vehicle Weight
205kW

Maximum Output
1,100Nm

Torque

Highlights

Handles heavy and tall loads
Smooth-shifting 9-speed transmission
Fuel-efficient engine
Tough, durable chassis and suspension

Built for Maximum Profitability

The FO line up was built with one clear goal in mind, maximizing profitability. The secret of success can be found in its low operating cost, reliability and functionality.

Time-proven technology means proven fuel efficiency, exceptional loading capacity and durability that make the FUSO FO serious value for money in any language.

Reliability comes from FUSO’s learnings from the last three decades, with hundreds of thousands of units in operation all over the globe. The benefit to the FO owner – everything you need and nothing you don’t.

Solid and highly functional design are hallmarks of the FO range, from its body builder friendly chassis rails down to its form-follows-function interior, everything has been distilled to the most robust and efficient solution possible, to save your business running costs and deliver maximum productivity.

Vehicle specifications may vary by market. Please contact your local certified FUSO dealer for more information.

The post FO appeared first on Mitsubishi Fuso Truck and Bus Corporation.

FJ

usnadmin — Thu, 11 Jul 2019 09:24:18 +0000

An Impressive Force to be Reckoned With

FUSO gifted the FJ with a high power output and a flat torque curve across the rev range, partnering this with selective catalytic reduction, to make it one of the world’s most profitable Euro 4/5 engines. A 9-speed transmission with crawler gear and engine demand based throttle control gives FUSO FJ heavy duty trucks additional flexibility for off road deployment.

Power windows, cruise control, tilt and telescoping steering wheel, air conditioning, central locking and a sleeper cabin ensure drivers remain at their peak performance over their entire journey. Anti-roll bars and multi-leaf rear suspension mean improved road holding, load carrying capacity and improved grip especially at higher speeds.

Vehicles may differ by market.

CAPABILITY

The Power You Need, the Durability You Count On

Efficient Drivetrain
The direct-injection diesel engine delivers high output and a flat torque curve for optimum performance. Fuel pumps are oil-lubricated to reduce wear and improve durability. On Euro 4 models, engine emissions are reduced through Selective Catalytic Reduction (SCR), with AdBlue® injected into the exhaust stream.

Peak Performance
The 6.4-liter 6S20 diesel engine reaches 210kW peak power at 2200rpm and an impressive 1120Nm peak torque at 1200-1600rpm.

Smooth, Durable Transmission
The six-speed (6F, 1R) synchromesh overdrive transmission facilitates smoother, more efficient gear shifts. The large diameter organic clutch plate provides good durability and smooth clutch engagement.

E-Viscous Fan
An electronic viscous cooling fan reduces engine load for improved fuel efficiency and overall performance.

Enhanced Suspension
The parabolic front suspension improves on-road comfort and operation. The multi-leaf rear suspension features additional leaves with increased thickness for added durability and greater payload capacity.

Grip and Stability
Front and rear anti-roll bars improve road grip and vehicle stability, especially when cornering or changing lanes at high speed.

INTERIOR

High Output, Higher Comfort

A three-way adjustable, air-suspended seat and tilt-and-telescoping steering wheel enable drivers to choose the most comfortable driving position based on their own requirements. Air-conditioning, power windows, cruise control and central locking ensures maximum comfort and reduced driver fatigue.

Sit Back and Relax
A new 3D seat fabric is designed to add a premium look and feel to the cab interior.

Easy-Access Drive Data
An LED dashboard panel makes vital information easily visible, including distance travelled, average speed and fuel consumed. An indicator also shows the gear and speed required to minimize fuel use.

LED Lamp
Enables greater visibility in low-light conditions.

VARIATIONS

Available in 18-ton and 25-ton variants, the FUSO FJ is built to meet your most rugged demands and comply to Euro 3, 4 or 5 emission standards. To find out which FJ models are available in your market, please contact your local distributor for more information.

FJ1823
18t

FJ2528
25t

The post FJ appeared first on Mitsubishi Fuso Truck and Bus Corporation.

Trucks | Mitsubishi Fuso Truck and Bus Corporation

New Super Great

A New Evolution for Transport and Society

An Engine Uniting Power, Comfort and Fuel Efficiency

Cutting Edge Advanced Preventive Safety Systems

Active Break Assist 6 (ABA®6)*1

Active Sideguard Assist® 2.0 *2

Front Blindspot Information System *3

Show Details

A Refined Interior, Inspiring a Sense of Peace

Vehicle specifications may vary by market. Contact your local FUSO distributor for more information.

New eCanter

New Power to Connect the Future of Logistics

Three Battery Configurations to Support Your Business Needs Across All Wheelbase Variants

Striking Exterior Design Befitting of the Next Generation EV

LED Headlights with Daytime Running Lights (DRL)

LED Rear Combination Lamps

Leverage the Power of Vehicle Data to Drive Business Success

Position and Trajectory

Safe Driving Information

Power Efficiency Information

Vehicle Management

Remote Diagnosis

Geo-Fencing Functionality

Connectivity Technology newly features EV specific function

The eCanter Evolves Further, with Mitsubishi Fuso’s Unique EV Technology

Compact Structure Realized by our Motor-Integrated “e-Axle”

3 Battery Sizes to Support Your Selection From a Wide Range of Body Types

Efficient and Comfortable. EV Technology Enables Even More Unique Functionality

Regenerative Brakes

Electric Hot-Water Heating (PTC Heater)

Battery Preconditioning

External Power Supply System (V2x)

Dual Charging Ports for Normal and Fast Charging

Further Enhance EV Performance with Our Options

Charging Ports

Power Extractor (ePTO)

Power-saving Heating/ Defrost Package

An Array of Advanced Safety Features Come Standard, Protecting Those Inside and Outside the Vehicle

Active Sideguard Assist®1.0

ABA®5：Active Brake Assist 5

Active Attention Assist®

IHC: Intelligent Headlight Control

TSR: Traffic Sign Recognition

Vehicle Stability Control System (ESP®)

Lane Departure Warning System (LDWS)

Even More Standard-Equipped Advanced Safety Functions

Electric Parking Brake (EPB)

Rear Eye Camera System

High Voltage Cutoff Switch

Vehicle Proximity Alert System (AVAS)

LED Headlights/Daytime Running Lights (DRL)

LED Rear Combination Lamp

Upgraded Interior for Superior Driver Comfort

Modern Interior Design Blends Beautiful Styling and Functionality

An Interior that Shapes Your Driving Experience with Purpose and Comfort

Driving Status at a Glance via the Full LCD Display

Center Console for All Your Information Needs

Steering Wheel Switches for Effortless Operation

FUSO Easy Access System

Easy-to-use Features and Standard Equipment to Support Your Daily Operations

A full lineup of optional equipment for even greater ease of use

Whatever Your Business Demands, the eCanter is Ready

Short Wheelbase

Long Wheelbase

Extra Long Wheelbase

An Extensive Chassis Lineup of 28 Models Covers a Wide Range of Applications

CARGO Cab Variation

CARGO Body Color Variations

CARGO Standard Equipment

FA/FI

Highlights

Light Footed and Powered for Profit

FZ

Highlights

All Performance, No Spin

TV

Highlights

Powerful Pull Drive Success

Canter

Active Break Assist 6
**(ABA®6)*1**

Active Sideguard
Assist® 2.0 *2

Front Blindspot
Information System *3

Efficient and Comfortable.
EV Technology Enables Even More Unique Functionality

Power-saving Heating/
Defrost Package

Redefining Everything a Truck can be, a New Era of Evolution
